Toscana Warisan

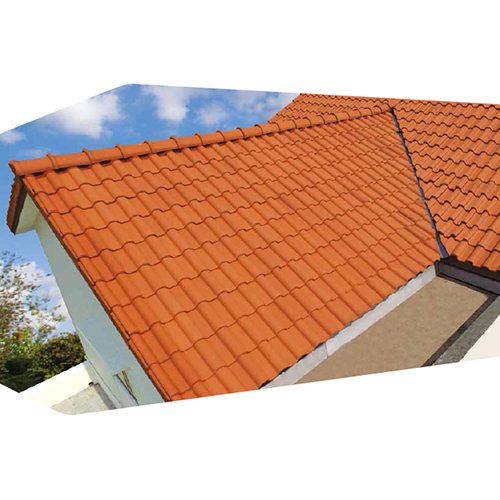

Toscana® Warisan is a new range in our Heritage Collection. A modern version of the classic high roll profile seen on roofs throughout Europe for centuries. It offers time-tested design, enhanced durability and improved leakproof performance with ingeniously designed double interlocking system.
![](/wp-content/uploads/2016/12/EXCELLENT.jpg)
![](/wp-content/uploads/2016/12/SUPERIOR.jpg)
![](/wp-content/uploads/2016/12/HIGH-TROPICAL.jpg)
DimensionsAvailable ColoursBrochure
![](https://www.sinlianhap.com/wp-content/uploads/2016/12/trscana.jpg)
Length (L) : 430mm
Horizontal Width (W) : 290 mm
Effective Width : 235 mm
Weight : 4 kg per pc (48 kg per m2)
Batten Gauge : 350 mm ( 5mm)
Min Headlap : 75 mm – 85 mm
Coverage : 12 pcs / m2 (based on 75mm headlap)
Minimum Pitch : 20°
Horizontal Width (W) : 290 mm
Effective Width : 235 mm
Weight : 4 kg per pc (48 kg per m2)
Batten Gauge : 350 mm ( 5mm)
Min Headlap : 75 mm – 85 mm
Coverage : 12 pcs / m2 (based on 75mm headlap)
Minimum Pitch : 20°
*Batten spacing has to be calculated based on actual rafter length. The maximum rafter length span up to 6 meters. In view of innovation, the specifications are subject to change without any prior notice and in the event of such changes, MONIER® shall ensure that the new specifications are equivalent if not better.
Brochure: Click Here
